Harbor View House

Client / Hillcrest Company

Area / San Pedro

Status / In Progress

Type / Mixed Use, Housing, Restaurant/Bar

Located in between Downtown San Pedro and the Main Harbor Channel, the historic Harbor House has panoramic, water-front views of the Port of Los Angeles. This five-story Mediterranean Revival building was constructed in 1925, originally as an Army and Navy YMCA.

Omgivning was tasked with the adaptive reuse of the 107,000 square-foot structure — comprising five stories and a basement — into a mixed-use building with residential units, a restaurant, lobby/lounge, basketball court, and a new pool. Work also included a seismic retrofit of the non-ductile concrete structure, as well as the installation of all new mechanical, electrical, and plumbing systems.

History

Built to support the nearby Naval Base San Pedro, the original YMCA building was designed by Jay, Rogers & Stevenson Architects, who were responsible for popular structures across Los Angeles and San Diego in the early decades of the 20th century. It originally housed a gym, pool, coffee shop, cafeteria, dormitory with 410 beds, and open-air handball courts, which were enclosed in 1944. In the 1940s, the building was converted from military to civilian use as a nursing home. The YMCA’s pool was filled in and a large portion of the ground floor became administration and back-of-house.

Harbor House was designated as a historic landmark in 1982 and even with this significant change of use, Omgivning met the Secretary of the Interior Standards for Rehabilitation and the Owner was able to obtain National historic tax credits. Throughout the building, the team preserved many of the original features, including painted beams in the grand lobby, tilework, artistic trim painting, and the existing basketball court with a running track above.

Harbor View House

Located in between Downtown San Pedro and the Main Harbor Channel, the historic Harbor House has panoramic, water-front views of the Port of Los Angeles. This five-story Mediterranean Revival building was constructed in 1925, originally as an Army and Navy YMCA.

Omgivning was tasked with the adaptive reuse of the 107,000 square-foot structure — comprising five stories and a basement — into a mixed-use building with residential units, a restaurant, lobby/lounge, basketball court, and a new pool. Work also included a seismic retrofit of the non-ductile concrete structure, as well as the installation of all new mechanical, electrical, and plumbing systems.
<br><br>
### History

Built to support the nearby Naval Base San Pedro, the original YMCA building was designed by Jay, Rogers & Stevenson Architects, who were responsible for popular structures across Los Angeles and San Diego in the early decades of the 20th century. It originally housed a gym, pool, coffee shop, cafeteria, dormitory with 410 beds, and open-air handball courts, which were enclosed in 1944.  In the 1940s, the building was converted from military to civilian use as a nursing home. The YMCA’s pool was filled in and a large portion of the ground floor became administration and back-of-house.

Harbor House was designated as a historic landmark in 1982 and even with this significant change of use, Omgivning met the Secretary of the Interior Standards for Rehabilitation and the Owner was able to obtain National historic tax credits. Throughout the building, the team preserved many of the original features, including painted beams in the grand lobby, tilework, artistic trim painting, and the existing basketball court with a running track above.

Owner / Hillcrest Company

Location / San Pedro

Status / In Progress

Type / Mixed Use, Housing, Restaurant/Bar

Located in between Downtown San Pedro and the Main Harbor Channel, the historic Harbor House has panoramic, water-front views of the Port of Los Angeles. This five-story Mediterranean Revival building was constructed in 1925, originally as an Army and Navy YMCA.

Omgivning was tasked with the adaptive reuse of the 107,000 square-foot structure — comprising five stories and a basement — into a mixed-use building with residential units, a restaurant, lobby/lounge, basketball court, and a new pool. Work also included a seismic retrofit of the non-ductile concrete structure, as well as the installation of all new mechanical, electrical, and plumbing systems.

History

Built to support the nearby Naval Base San Pedro, the original YMCA building was designed by Jay, Rogers & Stevenson Architects, who were responsible for popular structures across Los Angeles and San Diego in the early decades of the 20th century. It originally housed a gym, pool, coffee shop, cafeteria, dormitory with 410 beds, and open-air handball courts, which were enclosed in 1944. In the 1940s, the building was converted from military to civilian use as a nursing home. The YMCA’s pool was filled in and a large portion of the ground floor became administration and back-of-house.

Harbor House was designated as a historic landmark in 1982 and even with this significant change of use, Omgivning met the Secretary of the Interior Standards for Rehabilitation and the Owner was able to obtain National historic tax credits. Throughout the building, the team preserved many of the original features, including painted beams in the grand lobby, tilework, artistic trim painting, and the existing basketball court with a running track above.

\

Design

Reimagining Harbor House as a mixed-use building with multi-family housing required major construction, as well as upgrades to structural and building systems. While the original building dedicated nearly one-quarter of its space to common areas for exercise and socializing, Omgivning needed to carve out room to accommodate 100 new residential units, including ten low-income housing units.

The historic spaces were thoughtfully reused as common areas, while non-historic spaces, particularly the ground-floor back-of-house areas, were modified to maximize rentable square footage by creating residential units, making the project economically viable. Omgivning carved in a one-story light court to provide access to these units, enhancing natural light and airflow. By working with the existing structure and utilizing skylights, they optimized the potential of dwelling units, even creating unique two-story spaces that extend into some basement areas.

Upper floors in the original building consisted mainly of tiny sleeping rooms with shared bathrooms. To meet historic preservation requirements, Omgivning maintained double-loaded corridors on most floors which meant that residential units are only 11’ deep which was initially met with concern, however, the design solution meant that all units were long and thin, but on the window line. Most units are now one or two-bedroom, with ample light and creative layouts to make them feel spacious. They also removed non-required stairs and other spaces to maximize residential square footage.

As with many of its other adaptive reuse projects, the team’s strategy was to design for the flexibility of existing conditions while creating unique, beautiful, and functional dwelling units. They designed typical kitchens and bathrooms that are smaller, size appropriate for smaller apartments, leaving the remainder of the unit flexible to grow, shrink, or switch closet locations based on existing conditions which could include window, door, column, or joist locations. This also allowed speed of construction by giving the General Contractor direction but building in flexibility for these existing conditions at each unit.

Amenities

Tasked with creating additional revenue-generating spaces, the team designed Harbor House with blended first-floor common areas that could be opened to the public, allowing the local community to experience the century-old building. The main lobby will serve as the connection between public and private spaces, complete with a courtyard and newly planted trees.

The original basketball court was restored for play again, while the running track above was preserved as a historic element– Community sports, classes, and special events in this gym area will be open to all and bring in additional revenue, and tenants will be able to join as well as play basketball any time they want.

Private amenities were also created for tenants, including a private lounge equipped with distinct seating areas for multiple groups to work, relax, and gather.

Coming Soon

While Harbor House residences and community spaces are already open, a new restaurant, bar and pool are planned to open in 2025, and will all be available to both residents and the larger community for use.

\

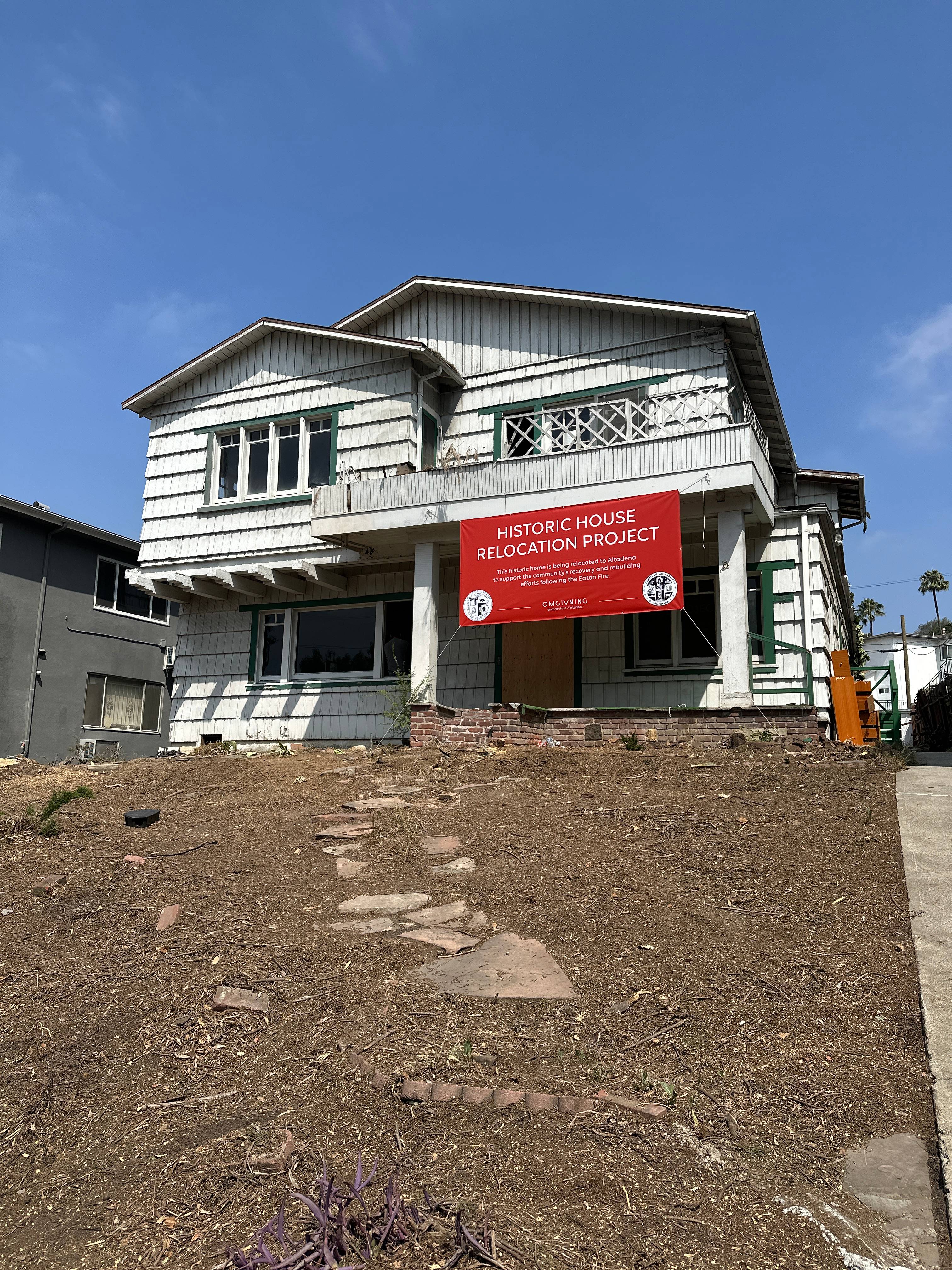

Historic and Pre-construction

The building's historic images with what the building looked like pre-construction.
